The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

Description

FEATURES:

The TURBO FORCE^® cutting deck is built to withstand the long, tough days on the job.
24" tires with big block horsepower allow you to travel at 12 mph.
More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
The 7 gauge TURBO FORCE^® deck with the i-beam front end is built to last and backed by our impressive warranty.
Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
A wide stance and optimal balance enhance hillside stability and control.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Brand:	Toro
Cutting Width:	72
Engine Displacement:	993cc
Engine Size:	37.0hp
Engine Type:	4-Stroke
Mower Type:	Stand on
Power Source:	Gasoline

More Specifications

Adjustable Discharge Baffle	Standard, Tools-Free
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	Standard
Blades	0.204 in. (5.18 mm)
Box Dimensions	82 in. x 63 in. x 52.5 in. / 208.3 cm x 160.0 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Caster Tires	13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Comfort Platform	Foldable Operator Platform with Suspension
Deck Design	7-gauge72" (183 cm) TURBO FORCE® 2 w/bull-nose bumper
Deck Size	72 in / 183 cm
Discharge Chute	Rubber
Drive System	Tuff Torq TZT13s 13cc IHTs
Drive Tires	24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine	37 hp Briggs & Stratton Vanguard 993 cc EFI
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	993 cc
Engine Horsepower	37 hp
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Capacity	10.5 gal. / 39.7 L / 42 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hour Meter	Standard
Number of Blades	3
Product Type	Stand-On Mowers
Reverse Ground/Transport Speed	Up to 5.0 mph / 8.0 kph
Spindle Bearings	Greaseless Ball Bearings
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	Twin Lever
Weight	1,209 lbs / 548.4 kg

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Toro 72517 72" GrandStand HDX Turbo Force Deck w/ 37hp Van EFI OG Engine currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

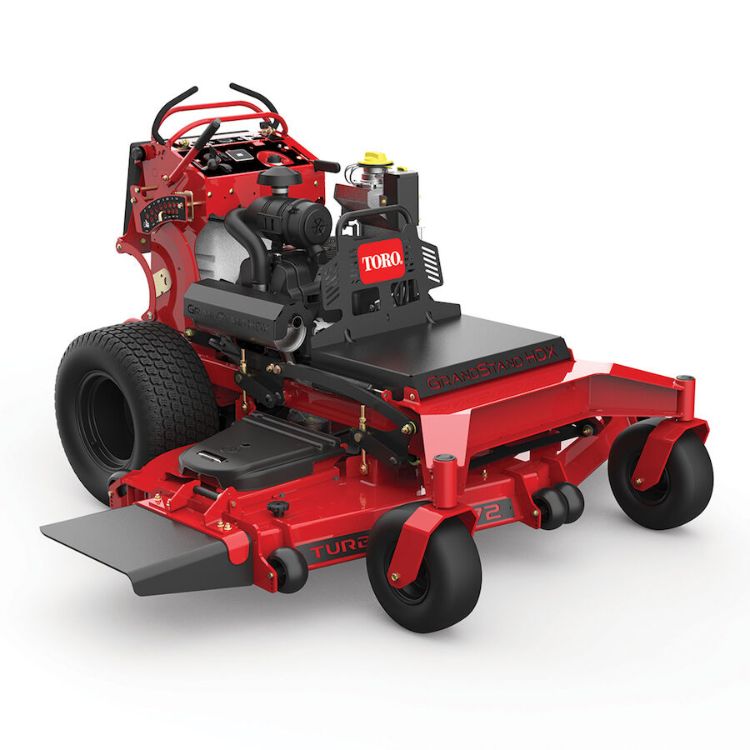

Toro 72517 72" GrandStand HDX Turbo Force Deck w/ 37hp Van EFI OG Engine

Toro

72517

Price: $16,799.00

Special Order In-store pickup/local delivery only

This is a genuine Toro product. Sohars All Season Mower is an authorized Toro Consumer and LCE / Commercial products dealer.
