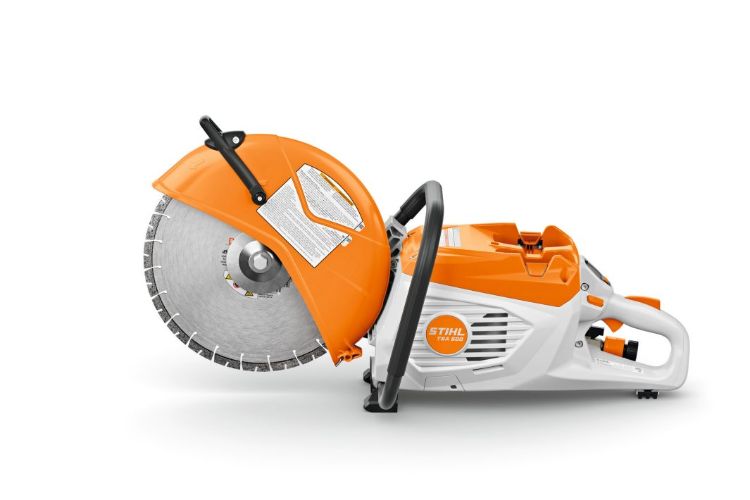

Take on demanding cutting applications without the noise, exhaust emissions, and maintenance of a gasoline engine with the STIHL TSA 500 Battery Cutquik® Cut-Off Machine. Built for professional construction and hardscape work, the TSA 500 combines powerful battery performance with a 14 in. cutting-wheel capacity for cutting concrete, masonry, metal, and other demanding materials.

Powered by two batteries from the STIHL AP System, the TSA 500 delivers strong cutting performance while offering the convenience of cordless operation. Its ergonomic design and intuitive controls help make operation comfortable and straightforward, while the adjustable wheel guard allows the machine to be configured for different cutting positions. An integrated water connection supports wet cutting to help control dust during appropriate applications.

The TSA 500 also features the STIHL Magnetic Filter System, which helps protect the motor from fine metallic dust, along with the Advance Plus control system for convenient operation and machine status information. With no fuel mixing, engine starting, or exhaust emissions at the tool, the TSA 500 is well suited for professional jobs where battery power, mobility, and reduced maintenance are priorities.

Unit only. Batteries, charger, and cutting wheel are sold separately.

Description

Key Features

Powerful Battery Performance – Professional-grade cutting performance without the fuel, exhaust emissions, or engine maintenance of a gasoline-powered cut-off machine
14 in. Cutting-Wheel Capacity – Accommodates 14 in. cutting wheels for demanding concrete, masonry, and metal-cutting applications
Dual-Battery Power System – Operates using two STIHL AP System batteries for high-output professional performance
Advance Plus Control System – Intuitive controls provide convenient operation and machine status information
STIHL Magnetic Filter System – Helps protect the motor from fine metallic dust to support long service life
Adjustable Wheel Guard – Easily adjusts to accommodate different cutting positions and applications
Integrated Water Connection – Supports wet cutting to help reduce airborne dust when cutting appropriate materials
Ergonomic Design – Designed for comfortable handling and maneuverability during demanding professional work
Low-Maintenance Brushless Motor – Delivers efficient performance with less routine maintenance than a gasoline engine
Cordless Operation – Eliminates fuel mixing and pull starting while providing jobsite mobility
STIHL AP System Compatible – Designed for STIHL's professional AP battery platform
Unit Only – Batteries, charger, and cutting wheel are sold separately

Specifications

Brand:	STIHL
Batteries Included:	0
Cutting Depth:	4.9"
Item Type:	Cut-Off Machine
Length:	32.3 in. (Weight is without batteries or cutting wheel)
Power Source:	Battery
Voltage:	72V
Weight:	20.1 lb (Mechanical power equivalent to gasoline equipment)

More Specifications

Specification	Details
Model	TSA 500
Power Source	Battery
Battery System	STIHL AP System
Rated Voltage	72 V
Maximum Voltage	80 V
Power Consumption	5 kW
Power Output	5.6 bhp*
Battery Operation	Two batteries, discharged simultaneously
Recommended Battery	AP 300.0 P
Weight	20.1 lb without batteries or cutting wheel**
Cutting Wheel Diameter	13.8 in.
Maximum Cutting Depth	4.9 in.
Length	32.3 in. with cutting wheel
Motor	Brushless
Water Resistance	IPX4
Cutting Wheel Included	No
Battery & Charger Included	No

* Power output is a mechanical-power value provided for comparison with gasoline-powered equipment.
** Weight is without batteries or cutting wheel.
