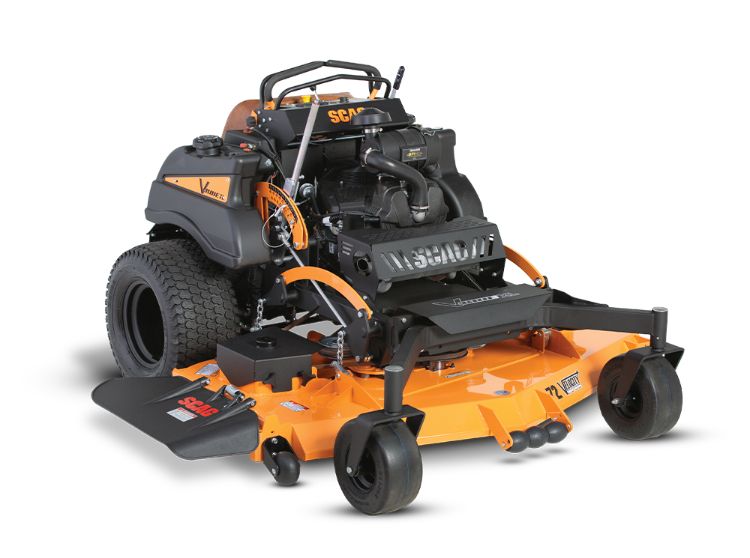

The V-Ride XL proves that it’s possible to be tough as nails and soft as a cloud. Its solid frame and expansive operator platform with an adjustable suspension to reduce vibration ensure you’re always riding in comfort no matter how big the job. Upgraded pumps and wheel motors are extra rugged and reliable, giving you confidence you’re always ready to tackle whatever comes your way.

Description

Specifications

Brand:	Scag
Cutting Width:	72"
Engine Displacement:	993cc
Engine Size:	40.0hp
Engine Type:	4-Stroke
Fuel Capacity:	12 gallon
Mower Type:	Stand on, Zero Turn
Power Source:	Gasoline
Starter Type:	Electric Start

More Specifications

Total Fuel Capacity	12 Gallons
Drive Tires	24" x 12"-12"
Caster Tires	13" x 6.5"-6"
Drive System Type	Dual Pump & Motor
Pumps	Hydro-Gear 16 cc
Motors	Hydro-Gear 18 ci
Forward Ground Speed	Up to 11.6 mph
Reverse Ground Speed	5 mph
Parking Brake	Hand lever
Cutting Width	72"
Type	Velocity Plus cutter deck
Cuting Height	2" to 6" in .25" increments
Lift	Hand lever
Construction	Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
Spindles	Cast-iron housing with tapered roller bearings
Blade Engagement	Ogura 3.5 (250 ft lb)
Length	76"
Tracking Width	53.2"
Width (chute down)	83"
Width (chute in transport position)	73.75"
Height	47.75"
Weight	1,2641,293 lbs.
