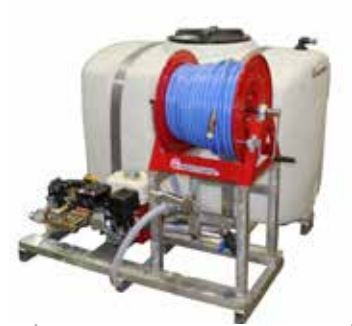

The Maruyama MSD51-200 is a professional-grade 200-gallon skid sprayer built for demanding commercial chemical application jobs in lawn care, agriculture, golf course maintenance, pest control, parks and recreation, sanitation, and tree care industries. Powered by a reliable Honda GX200 4-cycle engine and equipped with Maruyama’s legendary UNIFLOW™ triplex piston pump, this skid sprayer delivers outstanding spraying performance with smooth flow, reduced pulsation, and consistent pressure output.

Designed for everyday commercial use, the MSD51-200 features a corrosion-resistant aluminum frame, durable polyethylene tank, and a manual hose reel system for dependable operation in tough working conditions. The MSD51 pump is capable of delivering up to 10.5 GPM and 570 PSI, providing the power needed for high-volume spraying applications and long spray distances.

Maruyama’s patented UNIFLOW™ piston pump technology allows fluid to move in only one direction through the pump, helping improve efficiency while reducing wear, fuel consumption, and maintenance requirements. Combined with Honda GX-series reliability and heavy-duty construction, the MSD51-200 is built to handle demanding commercial workloads season after season.

Whether you are spraying large properties, agricultural fields, athletic complexes, municipalities, or commercial landscapes, the Maruyama MSD51-200 offers the durability, capacity, and professional performance required for serious chemical application work.

Description

Key Features

  • 200-gallon commercial skid sprayer designed for professional chemical application
  • Powered by a reliable Honda GX200 4-cycle engine
  • Features Maruyama’s legendary UNIFLOW™ triplex piston pump technology
  • Delivers up to 10.5 GPM spray volume for high-capacity applications
  • Produces up to 570 PSI maximum pressure for demanding spraying tasks
  • Heavy-duty corrosion-resistant aluminum frame construction
  • Durable polyethylene chemical tank built for commercial use
  • Manual hose reel included for dependable field operation
  • Self-lubricating and self-cooling piston pump design helps reduce maintenance
  • Chrome-plated pump cylinders improve durability and wear resistance
  • Smooth, low-pulsation flow improves spraying consistency and efficiency
  • Ideal for lawn care, agriculture, golf courses, pest control, sanitation, parks, and tree care applications
  • Compatible with a wide range of optional spray guns, nozzles, wands, and extensions
  • 100% commercial-grade construction designed for everyday professional use

Specifications

Brand:
Maruyama
Capacity:
200 gallon
Engine Displacement:
196cc
Engine Size:
5.5hp
Engine Type:
4-Cycle
Fuel Capacity:
0.82 gallon
Item Type:
Skid Sprayer
Power Source:
Gasoline
Pressure Rating:
570 psi
Starter Type:
Recoil Start
Weight:
319 lbs

More Specifications

SpecificationDetails
ModelMSD51-200
Part Number849318
Equipment TypeSkid Sprayer
Tank Capacity200 gallons
Pump ModelMSD51 3/4" UNIFLOW™ Piston Pump
Pump TypeTriplex Piston
EngineHonda GX200 4-Cycle
Drive TypeDirect Drive
Maximum Pressure570 PSI
Spray Volume10.5 GPM
Hose Reel TypeManual
Hose Size & Length3/8" x 328'
Frame MaterialAluminum
Frame ColorSilver
Tank MaterialPolyethylene
Dimensions (L x W x H)60" x 50" x 44"
Dry Weight319 lbs
Cylinder CoatingChrome
Maximum Pump RPM3600 RPM
Required Pump PowerApprox. 5.0 HP

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions
Maruyama MSD51-200 200-Gallon Skid Sprayer w/ Honda GX200 Engine & Manual Hose Reel currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MSD51-200 200-Gallon Skid Sprayer w/ Honda GX200 Engine & Manual Hose Reel

Maruyama
MSD51-200
$7,485.00
Price: $7,485.00

    This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
