The Maruyama MSD41T 5/8" direct drive piston pump is engineered for dependable commercial spraying performance across a wide range of professional applications. Designed for efficiency and durability, this pump requires less operating energy while delivering consistent pressure and reliable fluid movement for demanding spraying tasks.

Built with Maruyama’s proven pump technology, the MSD41T is easy to maintain and ideal for lawn care, agriculture, golf course maintenance, pest control, sanitation, parks & recreation, tree care, and fire suppression applications.

Every Maruyama pump is manufactured to high quality standards and tested prior to delivery to help ensure dependable long-term performance in the field.

Description

Key Features

Direct drive piston pump designed for commercial spraying applications
Maruyama UNIFLOW technology helps reduce pulsation and maintain consistent pressure
Energy-efficient pump operation for improved performance and reduced strain
Easy-to-maintain design for simplified service and upkeep
Durable construction engineered for professional-duty use
Tested prior to delivery for quality control and dependable operation
Suitable for lawn care, agriculture, golf, pest control, sanitation, parks & recreation, tree care, and fire suppression applications
Compact pump design for easier installation and integration into spray systems
Designed to provide smooth and reliable chemical application performance
Manufactured by Maruyama, a spray equipment manufacturer since 1895

Specifications

Brand:	Maruyama
Pressure Rating:	580 psi

More Specifications

Specification	Value
Model	MSD41T 5/8"
Pump Type	Direct Drive Piston Pump
Maximum Pump Speed	3600 RPM
Suction Capacity	30 L/min
Maximum Pressure	40 kgf/cm²
Required Power	3.6 PS
Inlet Thread Size	G3/4
Outlet Thread Size	G1/2
Lubricating Oil Type	SAE 10W-30 (SC Grade)
Oil Capacity	0.38 L
Overall Length	195 mm
Overall Width	255 mm
Overall Height	210 mm
Weight	5.6 kg
Included Relief Valve	Yes
Flange Included	Yes

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MSD41T 5/8" Direct Drive Piston Pump w/ UNIFLOW Technology currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

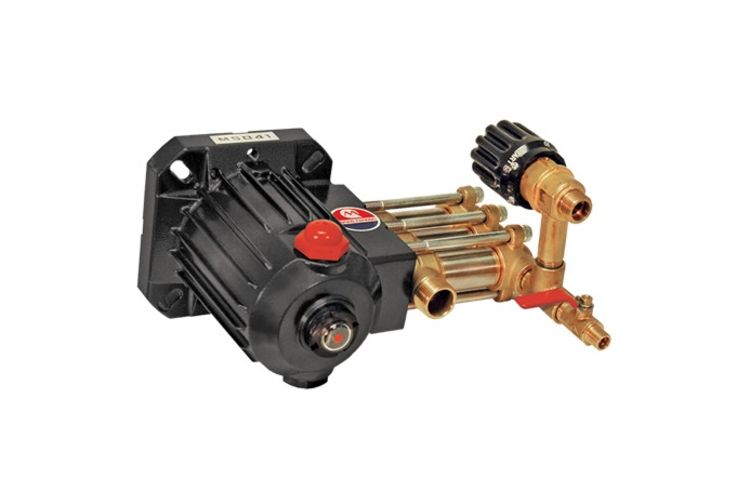

Maruyama MSD41T 5/8" Direct Drive Piston Pump w/ UNIFLOW Technology
