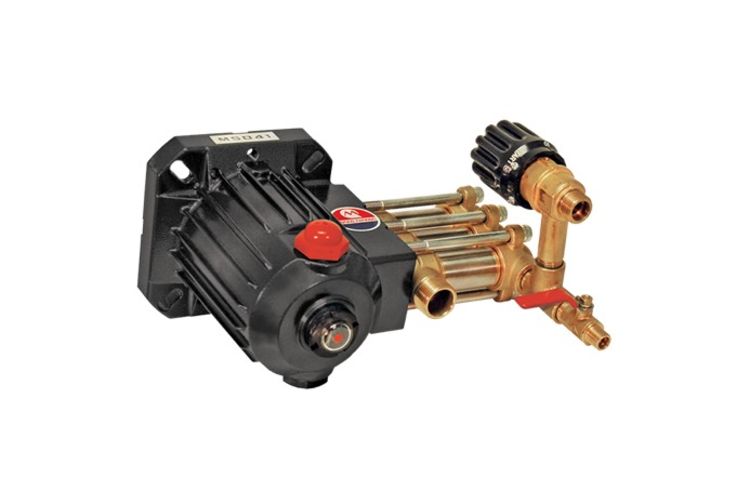

The Maruyama MSD41T 3/4" direct-drive piston pump is engineered for professional-grade chemical application with a compact, durable design and Maruyama’s patented UNIFLOW technology. This advanced system keeps fluid moving in a single direction through the pump to reduce pulsation and maintain consistent spraying pressure for efficient application performance.

Designed for reliability and easy maintenance, Maruyama piston pumps require less operating energy while delivering dependable output for demanding commercial applications. The MSD41T is ideal for lawn care, agriculture, golf course maintenance, pest control, sanitation, parks & recreation, tree care, and fire suppression use.

Each pump is manufactured to high quality standards and factory tested prior to delivery for dependable long-term performance.

Building quality spray equipment since 1895.

Description

Key Features

Patented UNIFLOW technology helps reduce pulsation and maintain consistent spraying pressure
Compact direct-drive design for efficient operation and easier installation
Triplex piston pump construction delivers reliable commercial-grade performance
Requires less operating energy compared to conventional pump designs
Designed for easy maintenance and long service life
Factory tested prior to delivery for dependable quality control
Ideal for lawn care, agriculture, golf course maintenance, pest control, sanitation, parks & recreation, tree care, and fire suppression applications
Built for professional chemical application performance
Manufactured by Maruyama, a spray equipment company with history dating back to 1895

Specifications

Brand:	Maruyama
Pressure Rating:	580 psi

More Specifications

Specification	Value
Model	MSD41T 3/4"
Pump Type	Direct-Drive Triplex Piston Pump
Maximum Pressure	580 PSI (40 kgf/cm²)
Suction Capacity	30 L/min
Maximum Pump Speed	3,600 RPM
Required Power	3.6 PS
Inlet Thread Size	G3/4
Outlet Thread Size	G1/2
Lubricating Oil Type	SAE 10W-30 (SC Grade)
Oil Capacity	0.38 L
Overall Length	195 mm
Overall Width	255 mm
Overall Height	210 mm
Weight	5.6 kg

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MSD41T 3/4" Uniflow Triplex Piston Pump currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MSD41T 3/4" Uniflow Triplex Piston Pump

Maruyama

MSD41T 3/4

Price: $600.00

Special Order Ships to lower 48 United States In-store pickup/local delivery available

This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
