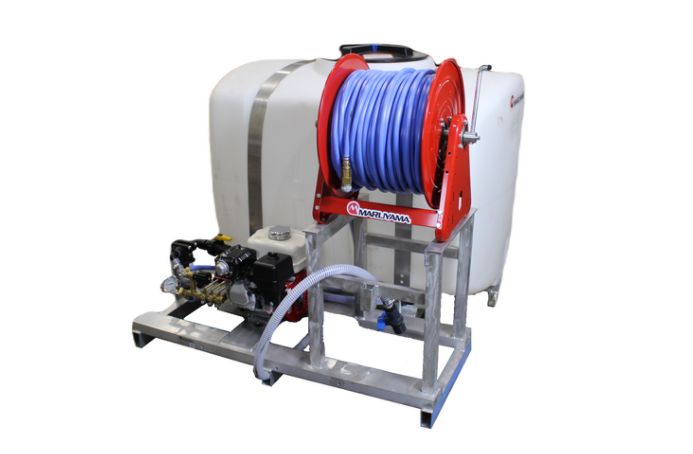

The Maruyama MSD41-200E extreme-duty skid sprayer is engineered for everyday commercial spraying applications and delivers an excellent balance of durability, performance, and efficiency. Built for professional use, the MSD41-200E features a field-proven Maruyama UNIFLOW™ piston pump, dependable Honda GX160 engine, and electric hose reel for convenient operation in demanding environments.

Designed for Lawn Care, Agriculture, Golf, Pest Control, Sanitation, Parks & Recreation, Tree Care, and fire control applications, this 200-gallon skid sprayer is built to withstand heavy daily use while maintaining consistent spraying performance.

Maruyama has been manufacturing high-quality spray equipment since 1895, delivering trusted reliability and professional-grade construction for commercial applicators.

Description

Key Features

200-gallon extreme-duty skid sprayer designed for professional commercial applications
Powered by a reliable Honda GX160 industrial-grade engine
Features a Maruyama UNIFLOW™ piston pump for smooth, consistent spraying performance
Equipped with an electric hose reel for easier hose management and operation
Heavy-duty skid-mounted design built for everyday use in demanding environments
Excellent for Lawn Care, Agriculture, Golf, Pest Control, Sanitation, Parks & Recreation, Tree Care, and fire control applications
Designed to provide strong chemical agitation for efficient application performance
Commercial-grade construction engineered for durability and long service life
Built for consistent pressure output and reduced pulsation during operation
Manufactured by Maruyama, a trusted spray equipment company since 1895

Specifications

Brand:	Maruyama
Capacity:	200 gallon
Engine Displacement:	163cc
Engine Size:	5.5hp
Engine Type:	4-Stroke
Power Source:	Gasoline
Pressure Rating:	580 psi
Starter Type:	Recoil Start

More Specifications

Specification	Details
Model	MSD41-200E
Product Type	Commercial Skid Sprayer
Tank Capacity	200 Gallons
Pump Model	Maruyama MSD41T 3/4"
Pump Type	UNIFLOW™ Piston Pump
Engine	Honda GX160
Reel Type	12VDC Electric ReelCraft Reel
Spray Hose	10mm x 100M Spray Hose
Spray Gun	MD9 Spray Gun
Suction Capacity	30 L/min
Maximum Pressure	40 kgf/cm²
Crankshaft Speed	3600 RPM
Required Power	3.6 PS
Pump Weight	5.6 kg
Pump Dimensions (L x W x H)	195 x 255 x 210 mm
Inlet Thread Size	PF3/4
Outlet Thread Size	PF1/2
Recommended Oil	SAE 10W-30 (SC Grade)
Oil Capacity	0.38 L
Tank Type	Polyethylene Tank
Application Type	Lawn Care, Agriculture, Golf, Pest Control, Sanitation, Tree Care, Fire Control

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MSD41-200E 200-Gallon Skid Sprayer w/ Honda GX160 Engine & Electric Hose Reel currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MSD41-200E 200-Gallon Skid Sprayer w/ Honda GX160 Engine & Electric Hose Reel

Maruyama

MSD41-200E

Price: $8,246.00

Special Order Ships to lower 47 United States (cannot ship to California) In-store pickup/local delivery available

This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
