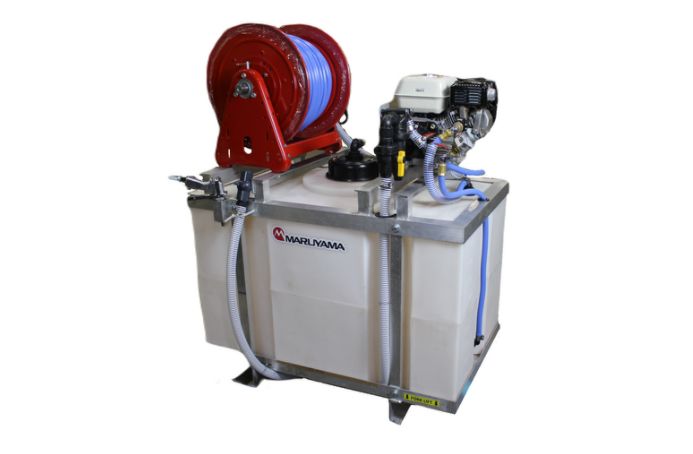

The Maruyama MSD41-100TE extreme-duty skid sprayer is designed for everyday professional use and delivers an outstanding balance of performance, durability, and efficiency. Built for demanding commercial applications, the MSD41-100TE features a field-proven Maruyama UNIFLOW™ piston pump, a reliable Honda GX160 engine, and an electric-assisted hose reel for added convenience and productivity in the field.

With its 100-gallon tank capacity and heavy-duty skid-mounted design, the MSD41-100TE is ideal for lawn care, agriculture, golf courses, pest control, sanitation, parks & recreation, tree care, and fire control applications. Maruyama’s professional-grade sprayer systems are engineered for long service life, consistent pressure, and dependable chemical application performance in demanding environments.

Designed and constructed to meet the needs of professional applicators, the MSD41-100TE continues Maruyama’s long-standing reputation for quality commercial spray equipment.

Description

Key Features

100-gallon professional-grade skid sprayer for commercial applications
Powered by a reliable Honda GX160 industrial-grade engine
Features Maruyama UNIFLOW™ piston pump technology for smooth, consistent pressure
Electric-assisted hose reel improves productivity and ease of operation
Heavy-duty skid-mounted design built for everyday professional use
Designed for lawn care, agriculture, golf, pest control, sanitation, and tree care applications
Excellent chemical agitation capability for maintaining solution consistency
Durable commercial construction engineered for long service life
Provides efficient and dependable spray performance in demanding environments
Ideal for professional applicators requiring high-capacity spraying capability

Specifications

Brand:	Maruyama
Capacity:	100 gallon
Engine Displacement:	163cc
Engine Size:	5.5hp
Engine Type:	4-Stroke
Fuel Capacity:	0.82 gallon
Item Type:	Commercial Skid Sprayer
Oil Capacity:	10 oz
Power Source:	Gasoline
Pressure Rating:	570 psi
Starter Type:	Recoil Start

More Specifications

Specification	Details
Model	Maruyama MSD41-100TE
Product Type	Commercial Skid Sprayer
Tank Capacity	100 Gallons
Pump Model	Maruyama MSD41T 3/4
Engine	Honda GX160
Pump Type	Maruyama UNIFLOW™ Piston Pump
Max Pressure	40 kgf/cm² (approx. 569 PSI)
Suction Capacity	30 L/min
Crankshaft Speed	3,600 RPM
Required Power	3.6 PS
Hose Reel Type	ReelCraft 12VDC Electric Reel
Spray Hose	10mm x 100M Spray Hose
Spray Gun	MD9 Spray Gun
Pump Oil Capacity	0.38 L
Recommended Oil	SAE 10W-30 (SC Grade)
Inlet Thread Size	PF3/4
Outlet Thread Size	PF1/2
Pump Dimensions (L x W x H)	195 x 255 x 210 mm
Pump Weight	5.6 kg

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MSD41-100TE 100-Gallon Skid Sprayer w/ Honda GX160 Engine & Electric Hose Reel currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MSD41-100TE 100-Gallon Skid Sprayer w/ Honda GX160 Engine & Electric Hose Reel

Maruyama

MSD41-100TE

Price: $6,684.00

Special Order Ships to lower 47 United States (cannot ship to California) In-store pickup/local delivery available

This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
