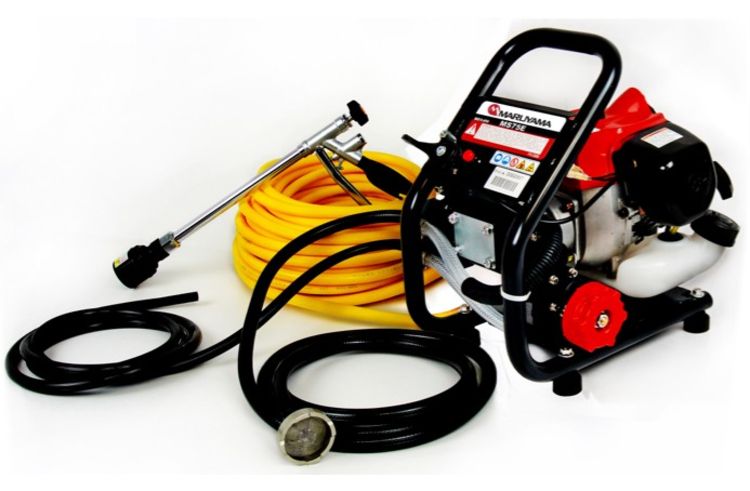

The Maruyama MS75E Barrel Top Power Sprayer is built for professional chemical application in lawn care, agriculture, pest control, sanitation, golf course maintenance, and tree care operations.

Designed for heavy-duty commercial use, the MS75E combines lightweight portability with rugged construction for reliable performance season after season.

Its professional-grade duplex Uniflow piston pump with liquid bypass provides excellent agitation for wettable powders and liquid solutions while delivering dependable spraying performance up to 356 PSI.

Powered by a field-proven 30.1cc 2-cycle engine, the MS75E offers the mobility and versatility of a portable sprayer with performance approaching that of larger skid sprayer systems.

Description

Key Features

Commercial-grade barrel top power sprayer designed for heavy-duty professional use
Powerful 30.1cc 2-cycle gasoline engine delivers reliable field performance
Duplex Uniflow piston pump provides consistent spraying pressure and durability
Liquid bypass system helps maintain excellent tank agitation for wettable powders and liquid solutions
Delivers up to 356 PSI for demanding spraying applications
Lightweight, portable design offers mobility without sacrificing performance
Ideal for lawn care, agriculture, pest control, sanitation, golf course maintenance, parks & recreation, and tree care applications
Rugged construction engineered for long service life in commercial environments
Portable alternative to larger skid sprayer systems
Designed to handle both liquid concentrates and wettable powder applications effectively

Specifications

Brand:	Maruyama
Engine Displacement:	30.1cc
Engine Size:	1.3 HP
Engine Type:	2-Stroke
Fuel Capacity:	0.16 gallon
Power Source:	Gasoline
Pressure Rating:	255 PSI
Starter Type:	Recoil Start

More Specifications

Specification	Value
Model	MS75E
Product Type	Barrel Top Power Sprayer
Engine Type	Forced Air Cool, 2-Cycle
Engine Model	Maruyama CER300
Engine Displacement	30.1cc
Rated Continuous Output	1.3 HP @ 7,500 RPM
Pump Type	Maruyama Twin Uniflow
Maximum Pressure	255 PSI
Suction Capacity	7.5 GPM
Fuel Tank Capacity	0.16 gal. (0.6 L)
Dry Weight	15.3 lbs. (7.5 kg)
Total Weight	22.9 lbs. (10.4 kg)
Dimensions (L x W x H)	13.8" x 10.8" x 12.8"
Fuel Mix Ratio	50:1
Ignition System	Electronic Ignition
Spark Plug	NGK BPM 6Y
Starting System	Recoil Starter

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MS75E Gas-Powered Barrel Top Sprayer w/ 30.1cc 2-Cycle Engine currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MS75E Gas-Powered Barrel Top Sprayer w/ 30.1cc 2-Cycle Engine

Maruyama

MS75E

Price: $988.00

Special Order Ships to lower 47 United States (cannot ship to California) In-store pickup/local delivery available

This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
