Maruyama’s belt-driven pump MS417 offers a compact design and features Maruyama’s patented UNIFLOW technology that helps ensure fluid moves in only one direction through the pump, reducing pulsation while maintaining consistent pressure for efficient chemical application.

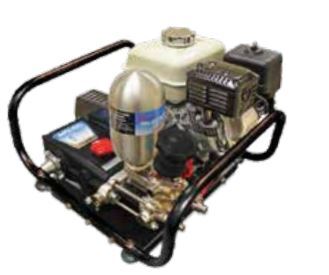

The MS417ECH combines the commercial-grade MS417 triplex piston pump with a dependable Honda GX160 engine for reliable performance in demanding spray applications. Maruyama piston pumps require less energy to operate, are easy to maintain, and are engineered for long-lasting durability in professional environments.

Ideal for use in lawn care, agriculture, golf, pest control, sanitation, parks & recreation, tree care industries, and even fire suppression applications, the MS417ECH is designed to deliver dependable pressure and smooth operation for a wide range of commercial spraying systems.

Every Maruyama pump is manufactured to high quality standards and tested prior to delivery for dependable long-term performance.

Disclaimer: Spray hoses, reels, tanks, guns, and additional spray accessories may be sold separately.

Description

Key Features

Commercial-grade belt-driven triplex piston pump design
Powered by a dependable Honda GX160 engine
Maruyama patented UNIFLOW technology helps reduce pulsation
Maintains consistent spray pressure for efficient chemical application
Belt-driven system helps reduce vibration and pump wear
Engineered for smooth, reliable operation in demanding environments
Requires less operating energy compared to many conventional pump systems
Easy-to-maintain piston pump construction
Ideal for lawn care, agriculture, golf, pest control, sanitation, and tree care applications
Suitable for fire suppression and commercial spray system use
Compact design for easier integration into spray rigs and skid systems
Professional-grade construction for long-term durability and performance

Specifications

Brand:	Maruyama
Engine Displacement:	163cc
Engine Size:	5.5hp
Engine Type:	4-Stroke
Item Type:	Pump & Engine Combo
Oil Capacity:	20 oz
Power Source:	Gasoline
Pressure Rating:	725 psi
Starter Type:	Recoil Start
Weight:	88.1 lbs

More Specifications

Specification	Details
Model	MS417ECH
Part Number	358668
Pump Type	MS417 UNIFLOW Triplex Piston Pump
Engine	Honda GX160 4-Cycle Gas Engine
Engine Power	5.5 HP
Number of Cylinders	3
Cylinder Coating	Ceramic
Drive Type	Belt Drive
Maximum Pressure	725 PSI
Flow / Suction Volume	7.9 GPM
Maximum RPM	1000 RPM
Dry Weight	88.1 lbs.
Agitation Type	Liquid Bypass
Commercial Warranty	5 Years
Country of Manufacture	Japan

Replaces

{"Maruyama":["MS417"]}

Fits These Models

Additional Information

Product Questions

Customer Questions

Maruyama MS417ECH Belt-Driven Triplex Piston Pump & Honda GX160 Engine Combo currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Maruyama MS417ECH Belt-Driven Triplex Piston Pump & Honda GX160 Engine Combo

Maruyama

MS417ECH

Price: $2,312.00

Arriving Soon Ships to lower 47 United States (cannot ship to California) In-store pickup/local delivery available

This is a genuine Maruyama product. Sohars is an authorized dealer of Maruyama sprayers and replacement parts.
