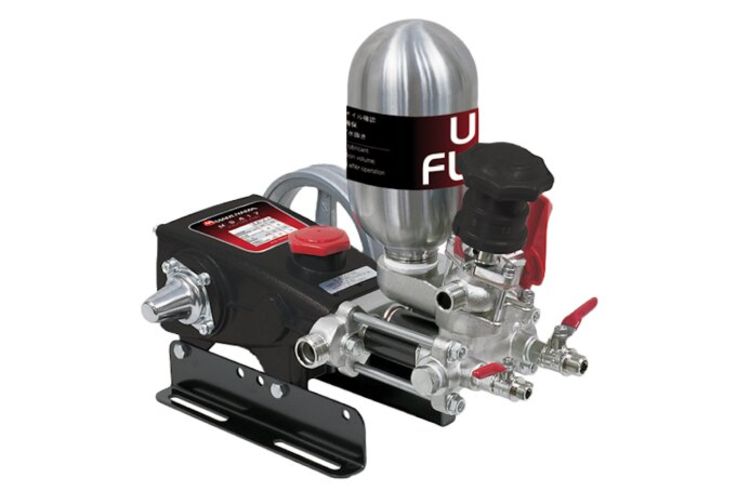

The Maruyama MS417 belt-driven triplex piston pump delivers compact, professional-grade performance for demanding spray applications. Featuring Maruyama’s patented UNIFLOW technology, the MS417 moves fluid in a single direction through the pump to reduce pulsation and maintain consistent pressure for efficient chemical application.

Designed for durability and easy maintenance, Maruyama piston pumps require less operating energy while providing dependable long-term performance in commercial environments. The MS417 is ideal for lawn care, agriculture, golf courses, pest control, sanitation, parks & recreation, tree care, and fire suppression applications.

Every Maruyama pump is manufactured to strict quality standards and tested prior to delivery to ensure reliable operation and professional results.

Building quality spray equipment since 1895.

Description

Key Features

Patented Maruyama UNIFLOW™ technology for reduced pulsation and smoother fluid delivery
Maintains consistent spray pressure for efficient chemical application
Heavy-duty triplex piston pump design for commercial-duty performance
Belt-driven configuration for reliable operation and reduced pump stress
Compact design for easier integration into spray systems
Lower energy requirements compared to many conventional pump designs
Easy-to-maintain construction for reduced service downtime
Factory tested prior to delivery for quality assurance
Ideal for lawn care, agriculture, golf, pest control, sanitation, tree care, and fire suppression applications
Built with Maruyama commercial-grade engineering and manufacturing standards
Designed for long-term durability in demanding professional environments
Backed by Maruyama’s spray equipment heritage dating back to 1895

Specifications

Brand:	Maruyama
Height:	14.2 in
Item Type:	Pump
Length:	16.3 in
Oil Capacity:	20.3 oz
Power Source:	Belt-Driven / Mechanical
Pressure Rating:	725 psi
Weight:	24.3 lbs
Width:	9.5 in

More Specifications

Specification	Maruyama MS417
Model	MS417
Pump Type	Triplex Piston Pump
Drive Type	Belt-Driven
Maximum Water Volume	41 L/min (10.8 GPM)
Maximum Pressure	5.0 MPa (725 PSI)
Recommended Pump Speed	1100–1500 RPM
Specified Power Requirement	1.3 kW
Dimensions (L × W × H)	415 × 242 × 361 mm
Dry Weight	11 kg (24.3 lbs)
Lubricant Type	SAE 10W-30 or SAE30 Non-Detergent
Lubricant Capacity	0.6 L
V-Pulley Size	152 mm (A-2)
Spray Valve Ports	G1/4, G3/8
Suction Hose Size	Ø19 mm × 3 m
Extra Water Hose Size	Ø13 mm × 3 m
Water Intake Strainer	30 Mesh
