Description

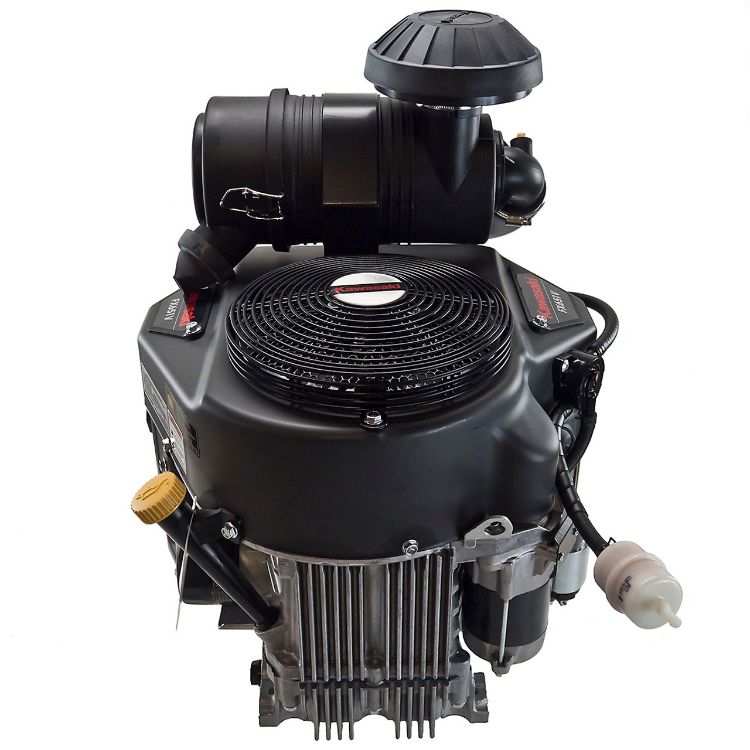

When long days, heavy loads, and tough tasks are on the horizon, trust the V-twin 4-cycle Kawasaki FX651V engine to help you get down to business without letting up. Durably designed for heavy use, this example of capable Kawasaki craftsmanship features cast-iron cylinder liners, a twin-barrel, internally vented carburetor, and a metal engine cover with integrated clean-out ports.

  • Heavy duty canister air filter system included
  • Does not include muffler
  • 15 amp charging coil included
  • Pulse type fuel pump included
  • Electric starter
  • V-twin
  • Cast iron cylinder liner
  • Overhead v-valve
  • Internally vented carburetor with fuel shut off solenoid
  • Full pressure lubrication system
  • Ball bearing crankshaft top support
  • Automatic compression release system

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1"
Crankshaft Length:
3-5/32"
Engine Displacement:
726cc
Engine Size:
20.5hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Electric Start

More Specifications

Displacement726 cc (44.3 cu. in.)
Number of Cylinders2
MountingVertical
Bore x Stroke3.1 in. x 3.0 in. (78mm x 76mm)
Compression Ratio8.2:1
Oil Capacity w/ Filter2.2 U.S. qt (2.1 liters)
Maximum Power20.5 hp (15.3 kW) at 3,600 RPM
Maximum Torque39.0 ft-lbs (52.9 Nm) at 2,200 RPM
Dry Weight101.4 lbs (46.0 kgs)
Warranty3-Year Engine Manufacturer Warranty

Replaces

{"Kawasaki":["FX651V-FS08-S"]}

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FX651V-S08S 651cc 1" x 3-5/32" 20.5hp Engine w/ Canister Air Filter currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FX651V-S08S 651cc 1" x 3-5/32" 20.5hp Engine w/ Canister Air Filter

Kawasaki
FX651V-S08S
$2,069.00
Price: $2,024.00

    You are viewing a genuine Kawasaki Engine product. Sohars is an authorized Kawasaki Engines dealer.
