Description

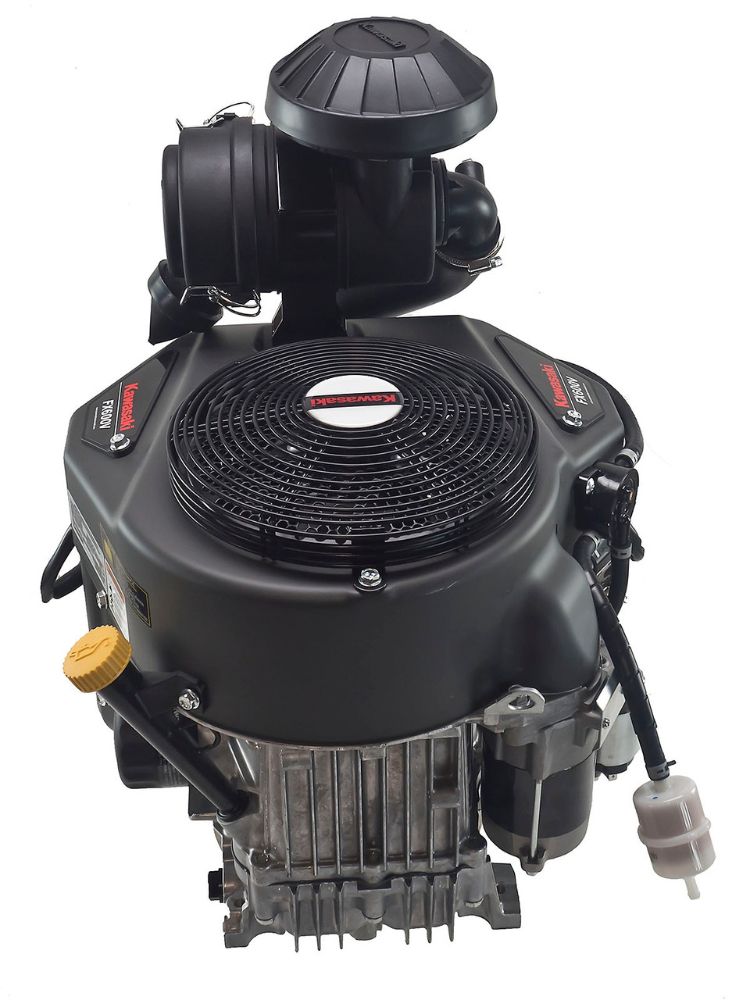

The toughest jobs you've got can get easier with help from the highly capable and dependable 4-cycle Kawasaki FX600V engine. A metal engine cover, heavy-duty shift-type starter, cast-iron cylinders, automatic compression release, and more add up to the kind of power and performance you need to take down the most challenging of tasks and then some.
  • Heavy duty canister air filtration system included
  • Does not include muffler
  • 15 amp charging coil included
  • Fuel pump included
  • Electric starter
  • Overhead v-valve
  • 90 degree V-twin
  • Pressurized lubrication system
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass chopper screen
  • Cast iron cylinder liners
  • Metal engine cover with integrated clean out ports

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1-1/8"
Crankshaft Length:
4-9/32"
Engine Displacement:
603cc
Engine Size:
19hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Electric Start

More Specifications

Displacement603 cc (36.8 cu. in.)
Number of Cylinders2
MountingVertical
Bore x Stroke2.9 in. x 2.8 in. (73 mm x 72 mm)
Compression Ratio8.1:1
Oil Capacity w/ Filter1.8 U.S. qt (1.7 liters)
Maximum Power19.0 hp (14.2 kW) at 3,600 RPM
Maximum Torque32.5 ft-lbs (44.0 Nm) at 2,200 RPM
Dry Weight89.7 lbs (40.7 kgs)
Warranty3-Year Engine Manufacturer Warranty

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FX600V-S02S 600cc 1-1/8" x 4-9/32" 19hp Engine w/ Canister Air Filter currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FX600V-S02S 600cc 1-1/8" x 4-9/32" 19hp Engine w/ Canister Air Filter

Kawasaki
FX600V-S02S
$1,992.00
Price: $1,967.00

    You are viewing a genuine Kawasaki Engine product. Sohars is an authorized Kawasaki Engines dealer.
