GX160-QXC9 is an OHV horizontal shaft lightweight engine. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life.

Common uses include powering: air compressors, generators, pumps, pressure washers, reel-type mowers, cement trowels, and construction equipment.

Features Include:

160cc, net 4.8HP
3/4"" x 2 7/16" crankshaft, 3/16" keyway, tapped 5/16-24
Fuel Tank
Oil alert
49-State CARB compliant

Description

Specifications

Brand:	Honda
Crankshaft Diameter:	3/4"
Crankshaft Length:	2-7/16"
Engine Displacement:	163cc
Engine Size:	4.8hp
Engine Type:	4-Stroke
Fuel Capacity:	0.825 gallon
Item Type:	Horizontal Engine
Oil Capacity:	18.88 oz
Starter Type:	Recoil Start

More Specifications

Warranty	3 year limited warranty
Ship Weight	40.0 lbs
Engine Displacement (cc)	163
Start Type	Recoil
Application	Pressure washer, compressor, log splitter, chipper/shredder
Engine Type	GX series OHV commercial-duty
Net Power Output (HP)	4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.)	7.6 (10.3 Nm) at 2,500 RPM
Shaft Output	Horizontal
Crankshaft	Q-type
Shaft Diameter (in.)	3/4
Shaft Length (in.)	2 7/16
Shaft Keyway (in.)	1/4
Shaft End Tapped (Diameter (in.)/Threads per inch)	5/16–24
Shaft Rotation (From PTO Shaft Side)	Counterclockwise
PTO Height (in.)	4 11/64
Cylinders (qty.)	1
Cylinder Bore	Cast iron
Bore x Stroke (in.)	2.7 x 1.8
Compression Ratio	9:1

Cooling System	Air cooled
Air Cleaner Type	Cyclone
Fuel Tank	Standard (White)
Fuel Type	Gasoline
Fuel Tank Capacity (qt.)	3.3
Fuel Filter	Fuel tank filler neck strainer
Oil Capacity (qt.)	0.59
Lubrication System	Forced splash
Low Oil Shutdown	Yes
Ignition System	Electronic
Governor System	Centrifugal mechanical
Carburetor	Float, inner vent
Throttle Control	Remote (cable)
Choke Control	Manual
Max. RPM	3,600
Muffler Included	Yes, (silent type, spark arrester, deflector)
Auto Compression Release	Yes
Bolt Circle (in.)	3 5/8
Mounting Base L x W (in.)	6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.)	12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board)	No

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

Honda 668050 GX160UT2X-QC9 163cc Horizontal Red Engine currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

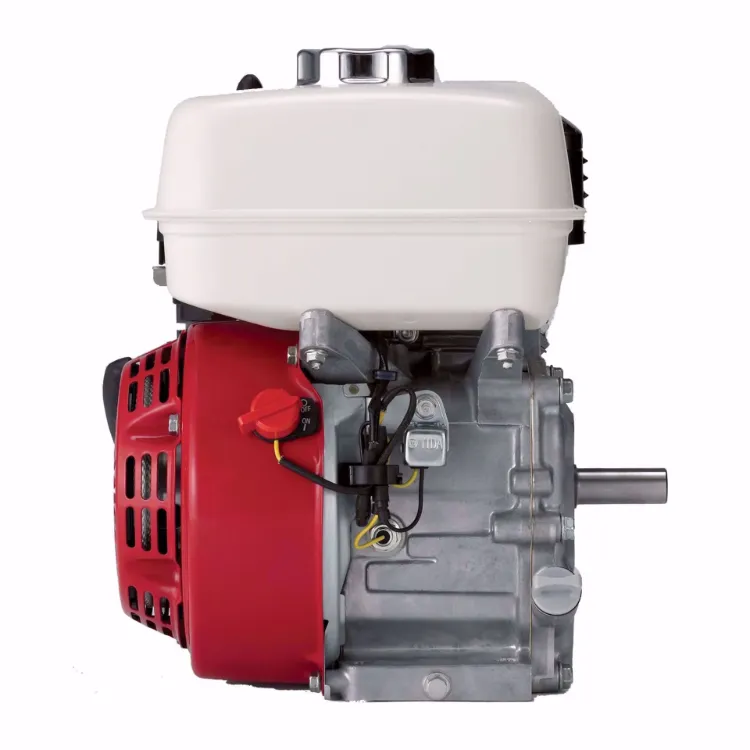

Honda 668050 GX160UT2X-QC9 163cc Horizontal Red Engine

Honda

GX160UT2X-QC9

Price: $489.00

In Stock Ships to lower 47 United States (cannot ship to California) In-store pickup/local delivery available (This item is shipped from a separate location and is not eligible for same-day pickup/delivery)

Free shipping (lower 48 states only)

This is a genuine Honda product. Sohars is an authorized Honda Power Equipment and Engines servicing dealer.
