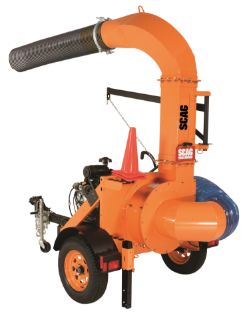

Industrial Tow Behind Truck Loader w/ 37 hp Kohler V-Twin Engine
- Scag
- TLB25-37CH
LEAVE THE REST. GET THE BEST.
When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.
4-Blade Impeller
FABRICATED AND BALANCED, 25-INCH, 4-BLADE IMPELLER
Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.
16" Steel Intake Nozzle
TAKE IT ALL IN
HUGE, replaceable intake nozzle makes debris pickup easy.
Adjustable Tongue and Hitch
FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your truck. A 2 5/16″ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler.
Built-In Tool Holder
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH
Built-in, 3-hole tool holder with rubber rings protects handles from damage.
Large-Capacity Fuel Tank With Built-In Gauge
HOURS AND HOURS OF RUN TIME
High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.
Specifactions
Model
TLB25-37CH
Engine
Kohler® Command PRO®, V-Twin, electric start
HP
37
Fuel Capacity/Tank
8.5 gallons – plastic tank with built-in fuel gauge
CFM Output
6,909
Frame Construction
All-steel, welded
Impeller Construction
4-blade, 1/2"-thick blades, all-steel, welded
Impeller Mounting
Straight bore
Impeller Diameter/Width
25" / 9"
Blower Housing Construction
Removable back panel for easy impeller and wear plate access
Blower Housing Width
10.5"
Blower Housing Wear Plates
Standard: 1/4"-steel, replaceable
Intake Hose Specifications
84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip
Unit Mounting
Hitch: at least 10,000 lb rating
Discharge Tube
Clear thermoplastic, 12" diameter, 84" length
Throttle Control
Commercial-grade, all-steel mechanicals
Highway Ready
Yes – standard roadside package, including wheel chocks and cones
Axle
Heavy-duty Dexter Torflex® axle (3,500 lb)
Tires
205 / 75 D15 highway tires with steel wheels
Trailer Width
66.75"
Accessories
Light Kit, Brake Kit
Height
121.25"
Weight
1,700 lb
Warranty
2-Year Commercial; 90-Day Rental
MSRP
$16,256
