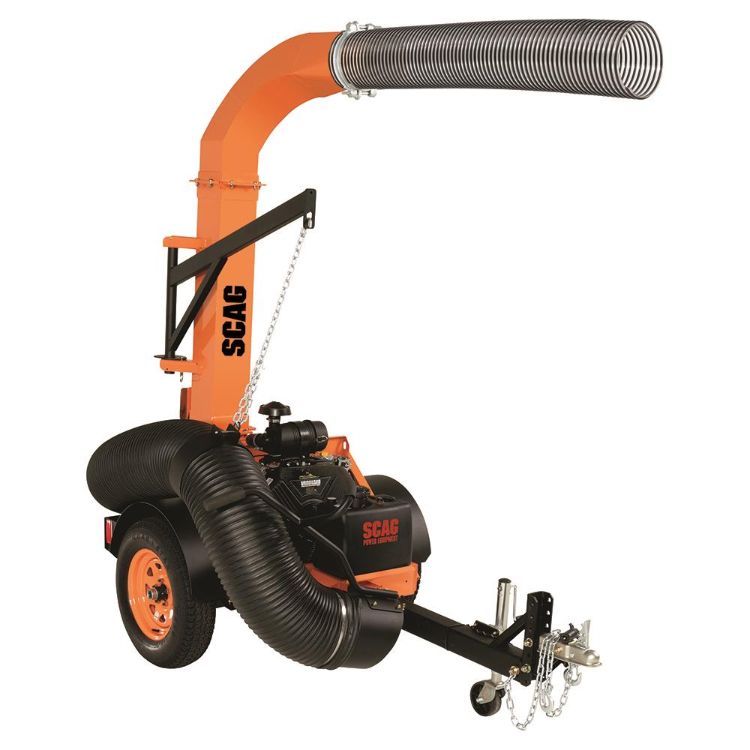

Heavy-Duty Tow Behind Truck Loader w/ 29 hp Vanguard Carbureted Big Block Engine
- Scag
- TL20W-29BV
NEVER BACK DOWN
Featuring two engine options and a two-year warranty, the Scag® Tow-Behind Truck Loader delivers peace of mind for operators that need a machine that can keep up with them. Designed firstmost with durability in mind, the Tow-Behind Truck Loader can handle whatever a job throws at it. Simply put, this machine is built to keep going and going.
4-Blade Impeller
FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
Smart Construction and Convenient Serviceability
EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.
12" Steel Intake Nozzle
TAKE IT ALL IN
Large, replaceable intake nozzle is beveled to make debris pickup easy.
Adjustable Tongue and Hitch
FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. Standard 2″ ball coupler will also accept a 2 5/16″ ball or pintle hitch.
Built-In Tool Holder
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH
Built-in, 3-hole tool holder with rubber rings protects handles from damage.
Specifactions
Model
TL20W-29BV
Engine
Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start
HP
29
Fuel Capacity/Tank
5.5 gallons – plastic tank with built-in fuel gauge
CFM Output
4,680
Frame Construction
All-steel, welded
Impeller Construction
4-blade, 3/8"-thick blades, all-steel, welded
Impeller Mounting
Tapered locking hub
Impeller Diameter/Width
20" / 6.5"
Blower Housing Construction
Removable back panel for easy impeller and wear plate access
Blower Housing Width
7.5"
Blower Housing Wear Plates
Standard: 1/4"-steel, replaceable
Intake Hose Specifications
120" length, 12"-diameter intake hose, 0.045 blue thermoplastic rubber, wire helix with wearstrip
Unit Mounting
Hitch: Class III minimum
Discharge Tube
Clear thermoplastic, 8" diameter, 60" length
Throttle Control
Commercial-grade, all-steel mechanicals, plastic debris cover
Highway Ready
Yes – optional roadside package
Axle
Heavy-duty Dexter Torflex® axle (2,000 lb)
Tires
205 / 75 R15 highway tires with steel wheels
Trailer Width
53.5"
Accessories
Light Kit, Roadside Kit
Height
110"
Weight
1,060 lb
Warranty
2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
MSRP
$10,088
