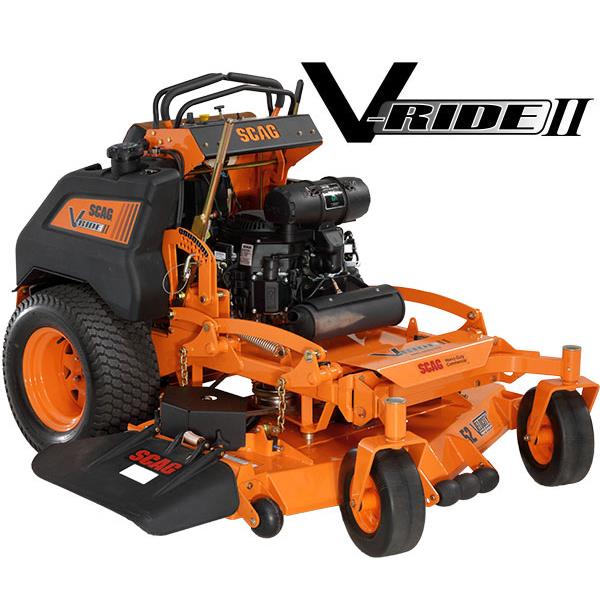

48" V-Ride II Stand-On Zero-Turn Lawn Mower w/ 22 hp Kawasaki 691FX Engine & Velocity Deck

The envy of the neighborhood
48", 52" OR 61" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths.

Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

Adjustable Operator Platform
EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE

The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator’s comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.

Cutter-Deck Lift System
CONVENIENT, SPRING-ASSISTED LEVER

Cutter deck can be lifted and locked into transport position from the operator’s station. Cutting heights are easily set by placing the tethered pin at the desired height.

High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

Industrial-Grade Hydraulic System
SPEEDS UP TO 10.5 MPH

48″, 52″ and 61″ models: Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14 ci) deliver dependable power, with speeds up to 10.5 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

32″ and 36″ models: Dual Hydro-Gear pumps (10 cc) and Parker wheel motors (12 ci) deliver dependable power, with speeds up to 8.5 mph.

Ease of Maintenance
MORE UPTIME

Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.

• Total Fuel Capacity
  5 gallons (32")
  6.75 gallons (36")
  8 gallons (48", 52", and 61")

• Drive Tires
  20" x 6.5"-10" (32")
  20" x 8"-10" (36")
  24" x 9.5"-12" (48" and 52")
  24" x 12"-12" (61")

• Caster Tires
  11" x 4"-5" (32" and 36")
  13" x 5"-6" (48" and 52")
  13" x 6.5"-6" (61")

• Seat
  Extra-large comfort cushion

• Drive System Type
  Dual Pump and Motor

• Pumps
  Hydro-Gear 10 cc (32" and 36")
  Hydro-Gear 12 cc (48", 52", and 61")

• Motors
  Parker 12 ci (32" and 36")
  Parker 14 ci (48", 52" and 61")

• Forward Ground Speed
  8.5 mph (32" and 36")
  10.5 mph (48", 52" and 61")

• Reverse Ground Speed
  5 mph

• Parking Brake
  Hand lever

• Cutting Widths
  32", 36", 48", 52" and 61"

• Type
  Advantage (32" and 36")
  Velocity Plus™ (48", 52", and 61")

• Cutting Height
  1.5" to 4.5" in .25" increments

• Deck Lift
  Hand lever

• Construction
  Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
  32" model features dual-plate.



• Spindles
  Cast-iron housing with tapered roller bearings.

• Blade Engagement
  Ogura GT2.5 (150 ft lb) – (32", 36", 48" and 52")
  Ogura GT3.5 (250 ft lb) – (61")
  Adjustable air-gap for extended life.
